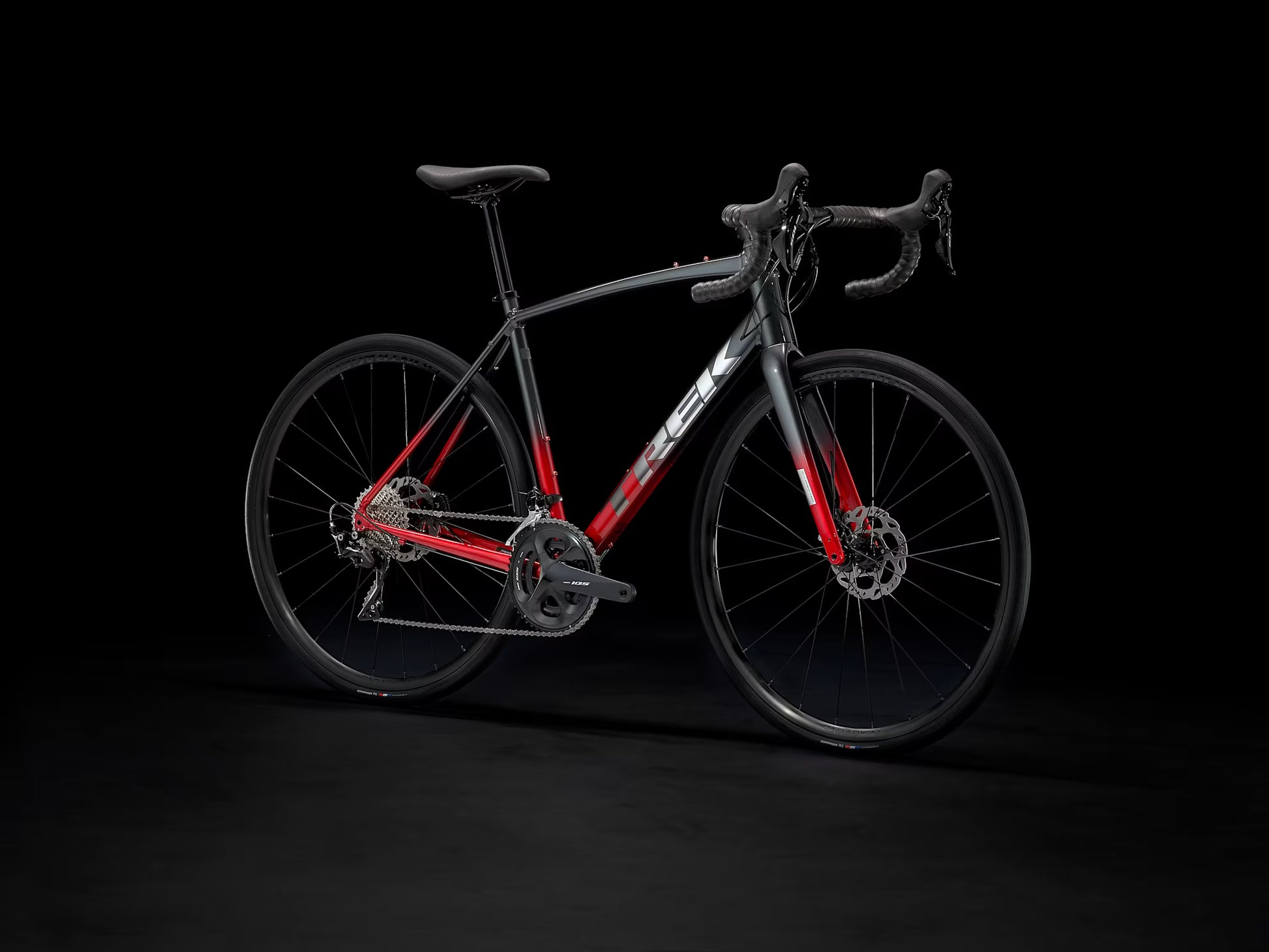

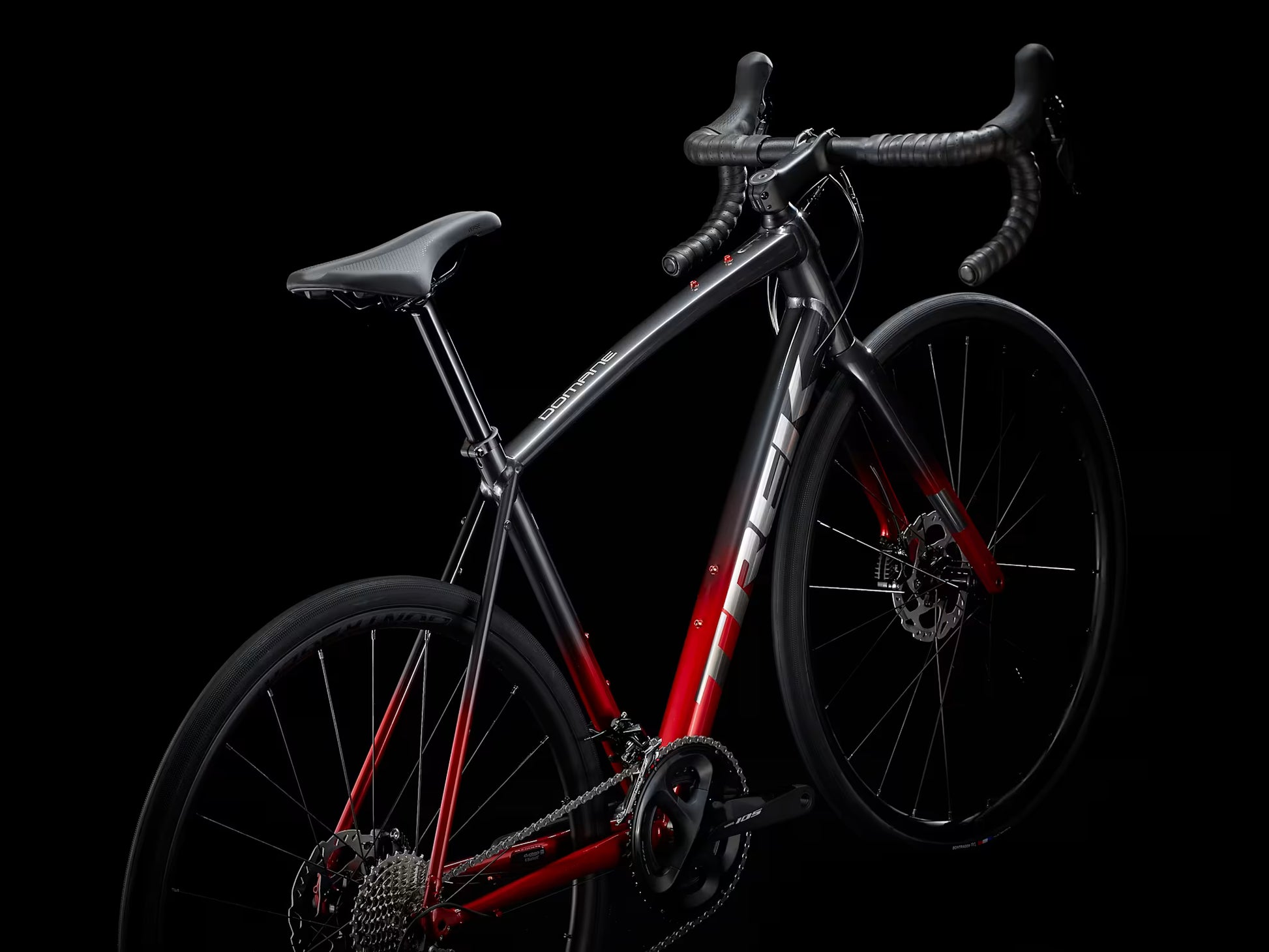

Domane AL 5 Gen 3 Road Bike

Frame

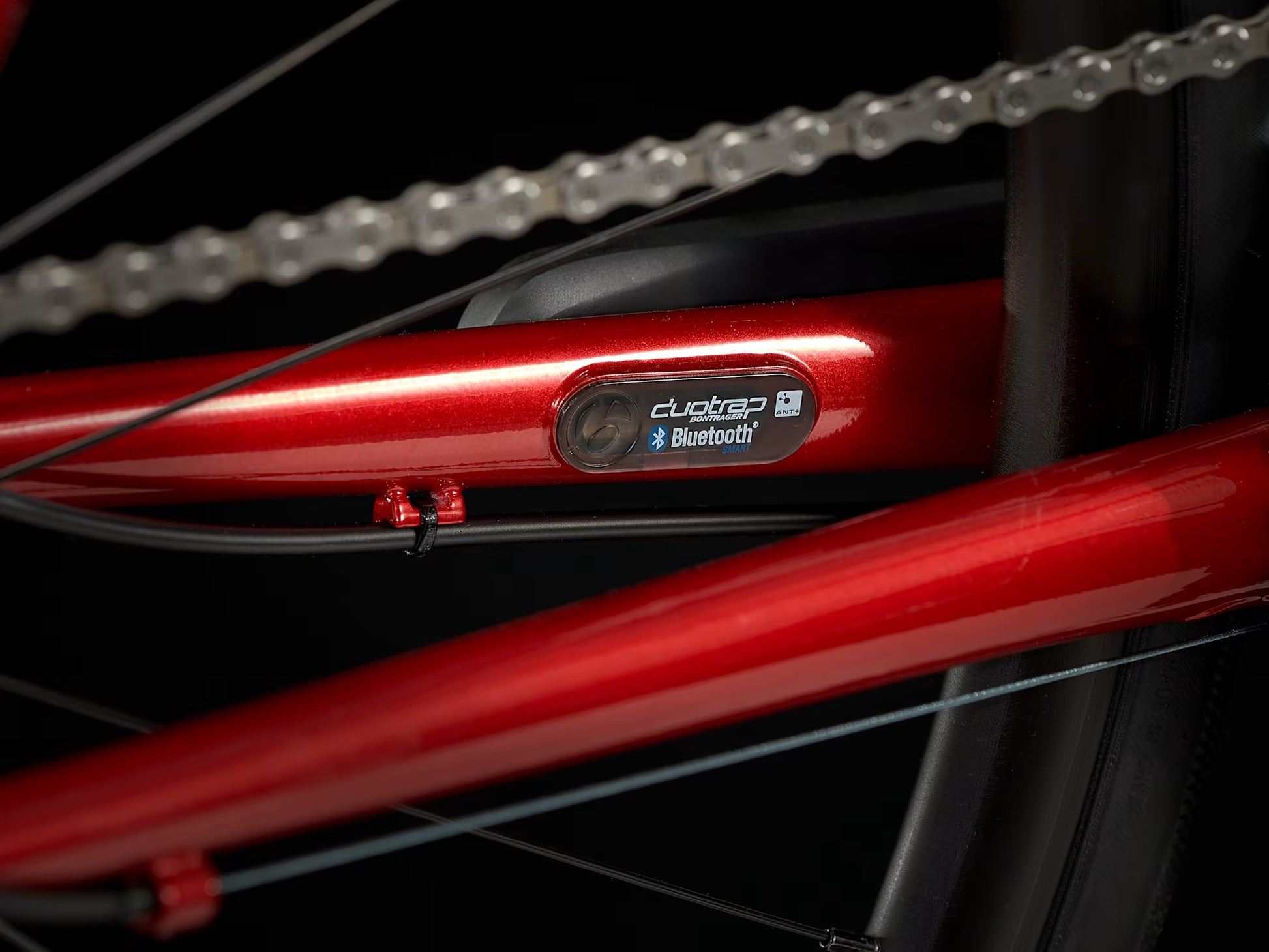

100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle

Fork

Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Frame fit

Endurance

Weight

56 - 10.10 kg / 22.27 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter

Shimano 105 R7020, 11 speed

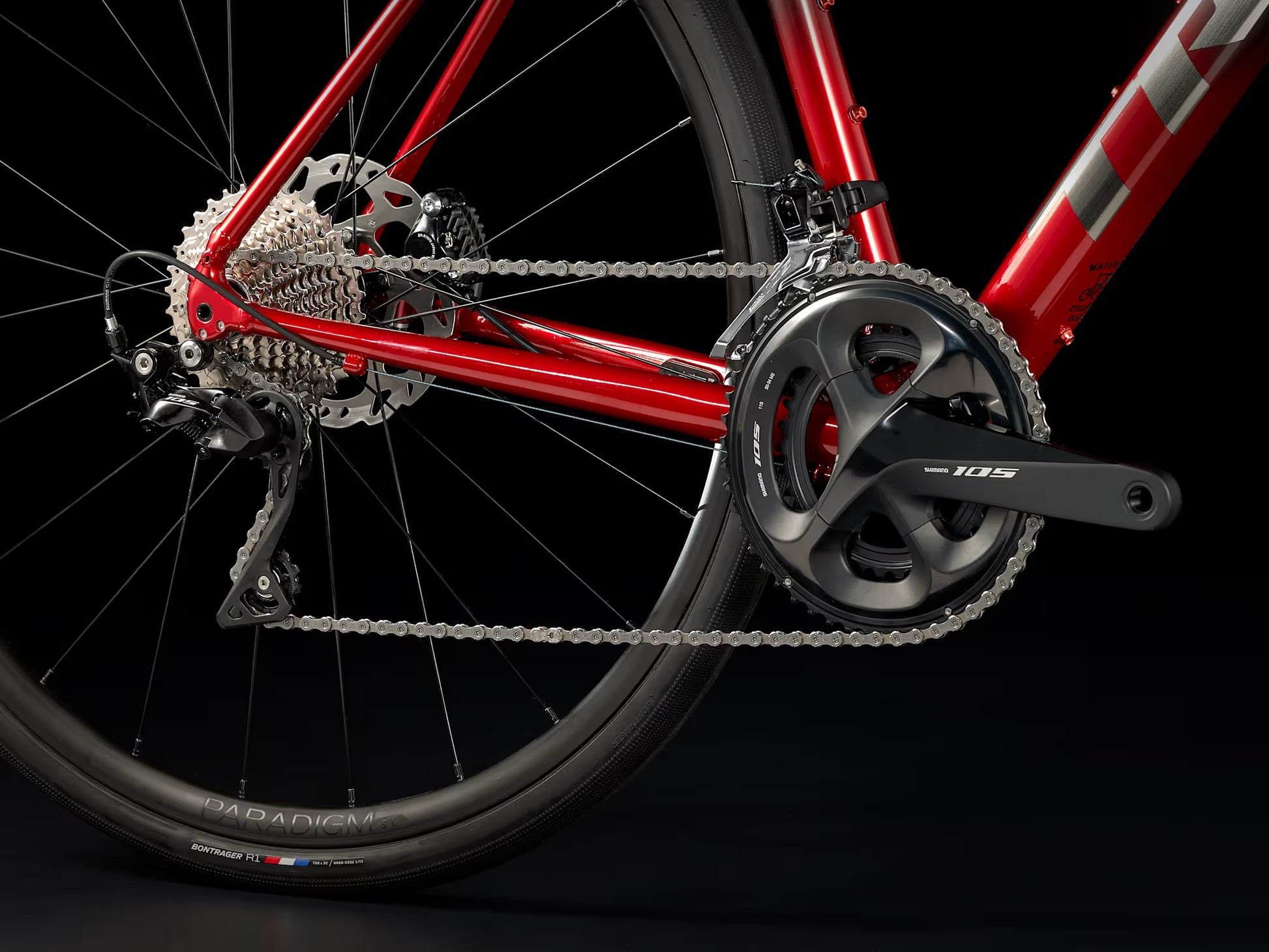

Front derailleur

Shimano 105 R7000, 31.8mm clamp

Rear derailleur

Shimano 105 R7000, long cage, 34T max cog

*Crank

Size: 44

Shimano 105 R7000, 50/34 (compact), 165mm length

Size: 49, 52
Shimano 105 R7000, 50/34 (compact), 170mm length

Size: 54, 56
Shimano 105 R7000, 50/34 (compact), 172.5mm length

Size: 58, 61
Shimano 105 R7000, 50/34 (compact), 175mm length

Bottom bracket

Shimano RS500, 68mm, threaded external

Cassette

Shimano 105 HG700-11, 11-34, 11 speed

Chain

Shimano HG601, 11 speed

Max chainring size

1x: 42T, 2x: 50/34

Hub front

Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Skewer front

Bontrager Switch thru axle

Hub rear

Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle

Skewer rear

Bontrager Switch thru axle, removable lever

*Rim

Size: 44, 49, 52, 54, 56, 58, 61

Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21mm width, Presta valve

Size: 49, 52, 54, 56, 58, 61

Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve

Size: 49, 52, 54, 56, 58, 61

Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve

Spokes

14g stainless steel, black

Tire

Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Max tire size

35mm without fenders, 32mm with fenders

*Saddle

Size: 44, 49, 52
Bontrager Verse Comp, steel rails, 155mm width

Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width

*Seatpost

Size: 44, 49

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length

Size: 52, 54, 56, 58, 61

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

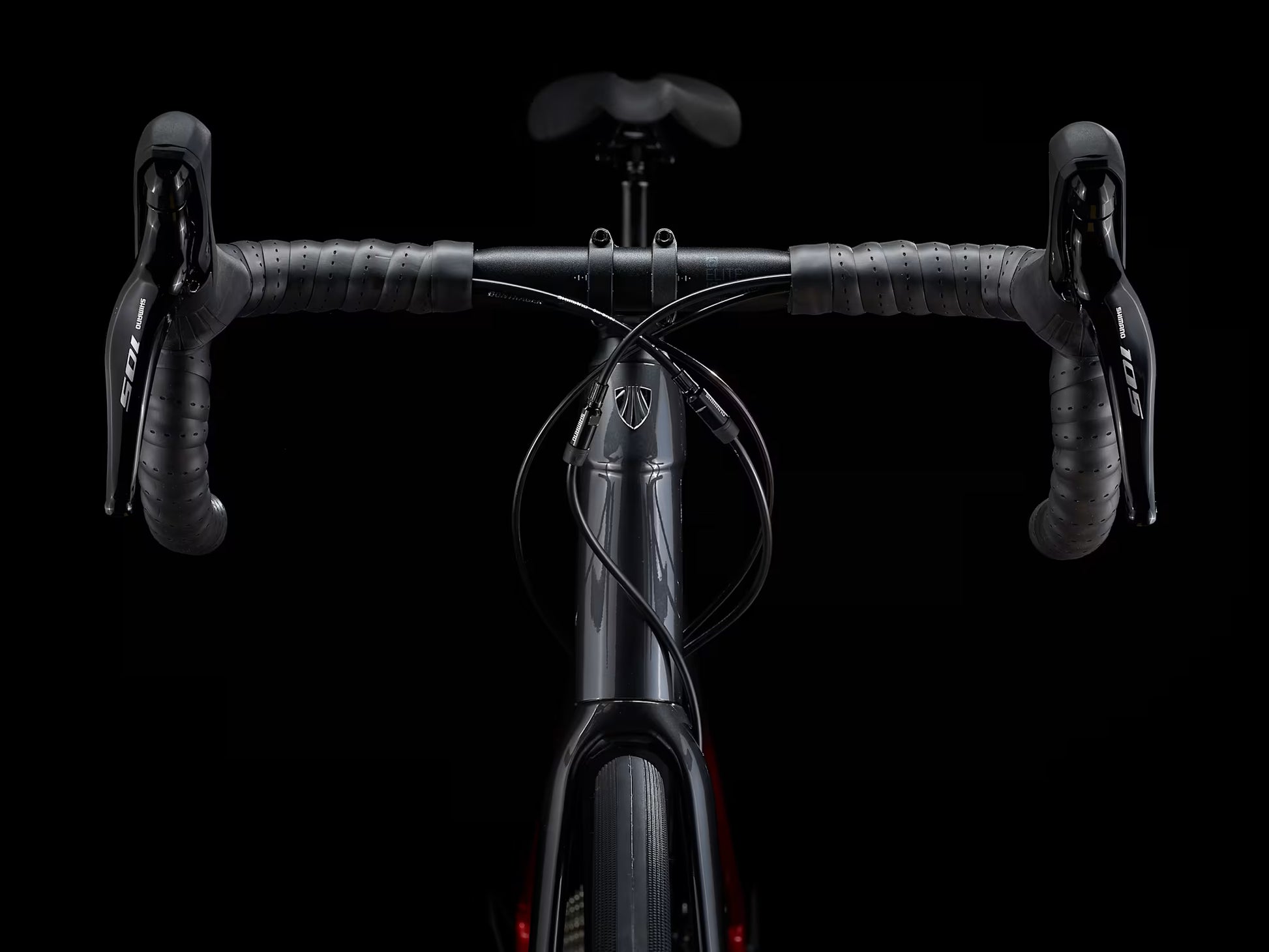

*Handlebar

Size: 44, 49
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width

Size: 52
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width

Size: 54, 56
Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width

Size: 58, 61
Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width

Handlebar tape

Bontrager Supertack Perf tape

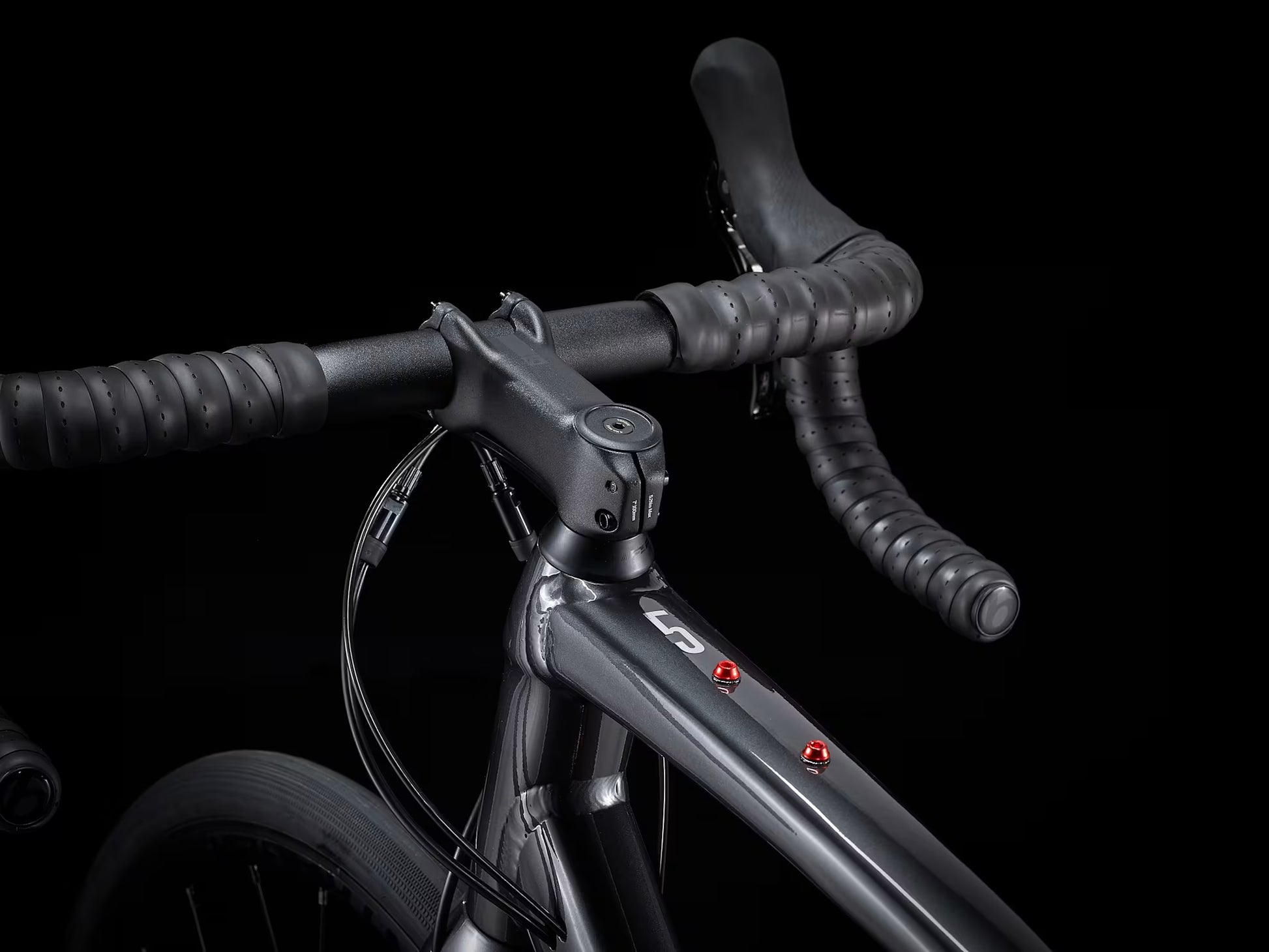

*Stem

Size: 44

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: 49

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: 52, 54

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: 56, 58

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

Size: 61

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

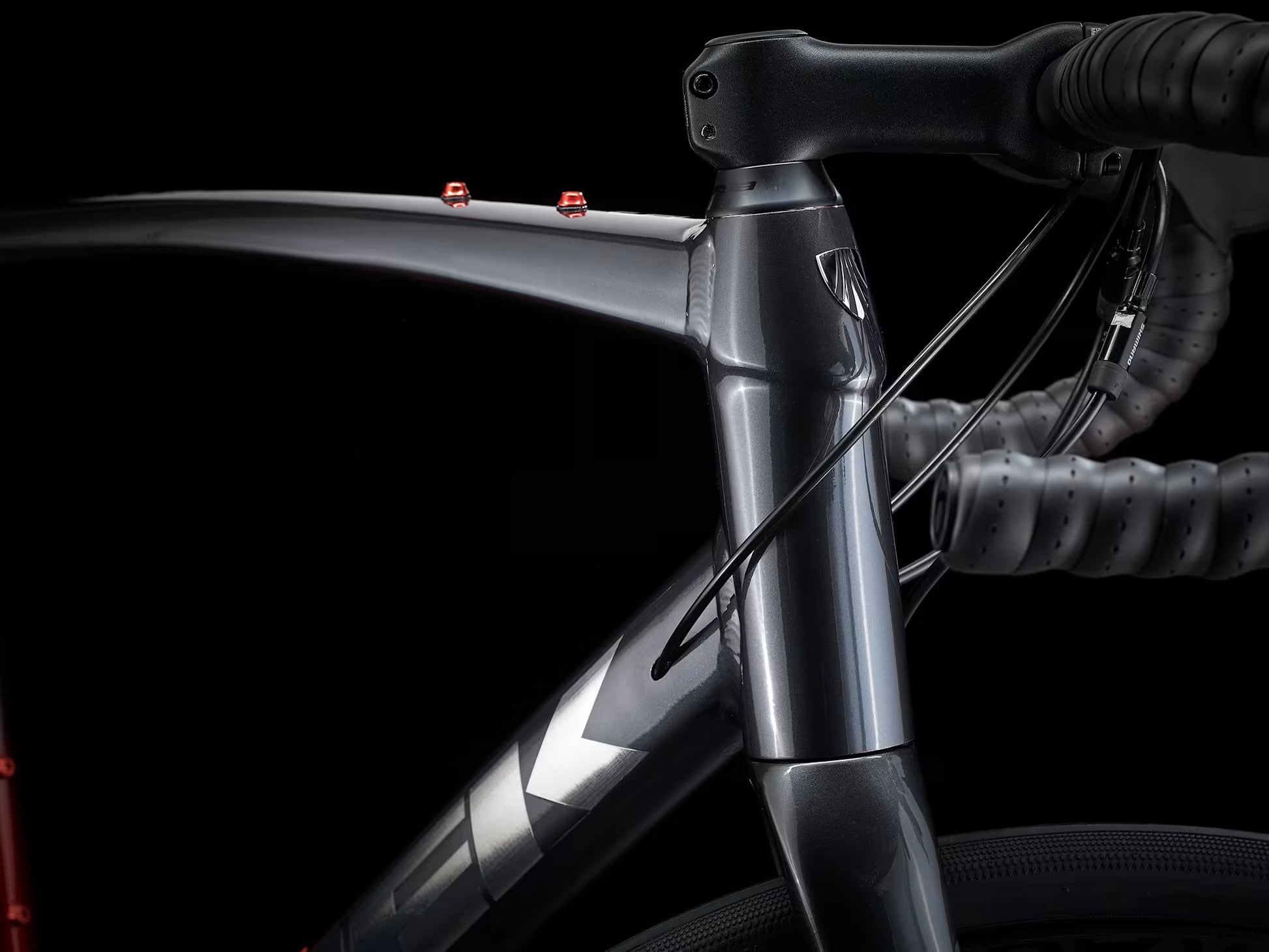

Headset

FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Brake

Shimano 105 hydraulic disc, flat mount

Brake rotor

Shimano RT70, centerlock, 160mm

Rotor size

Max brake rotor sizes: 160mm front & rear
