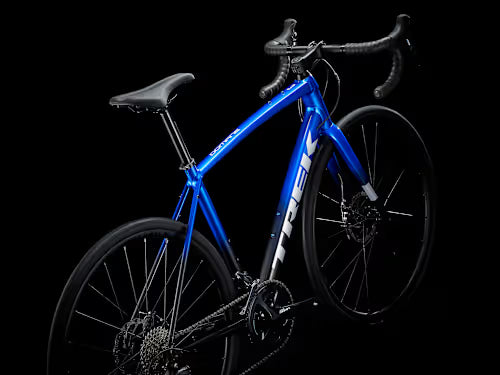

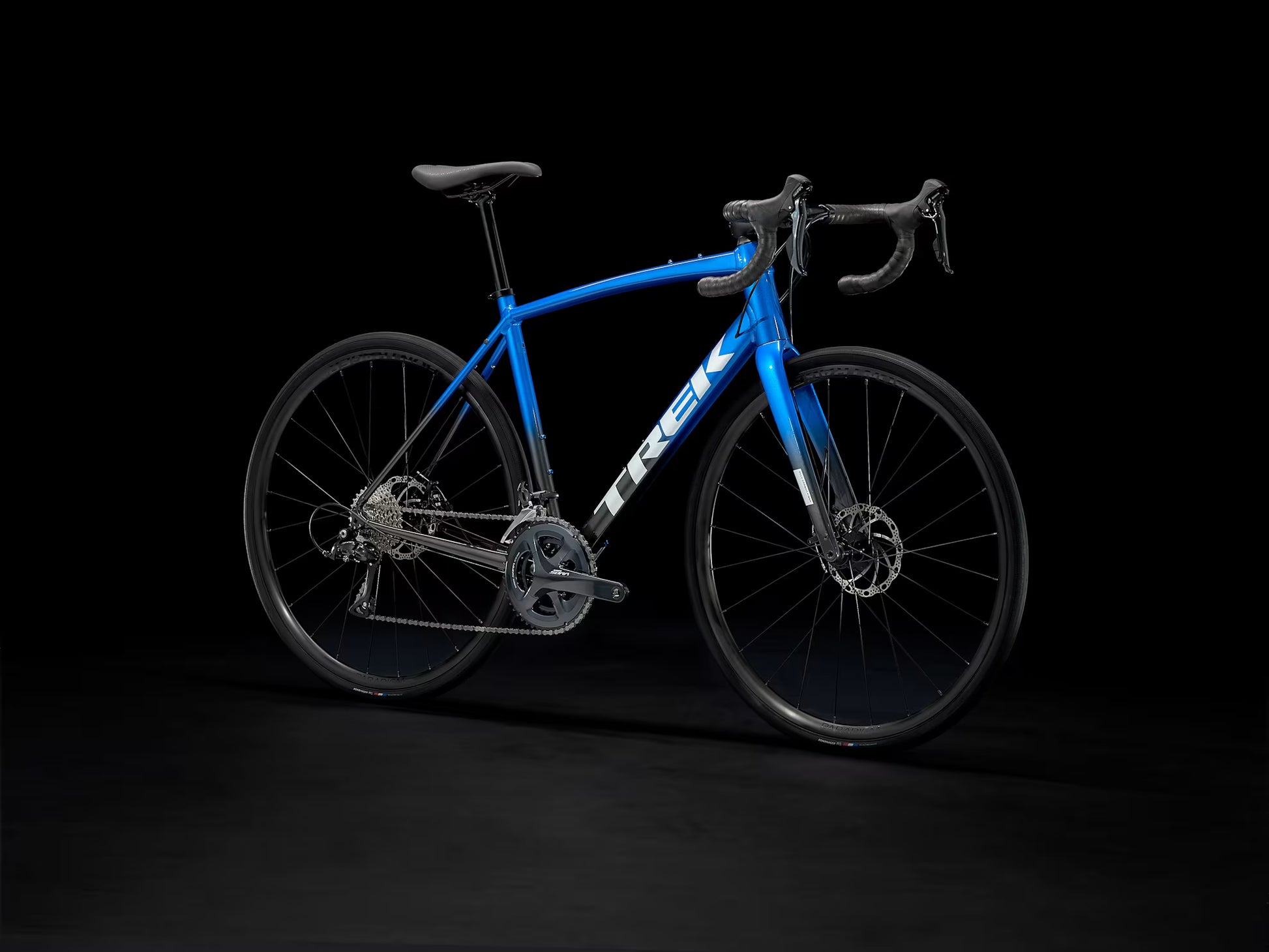

Domane AL 3 Gen 3 Road Bike

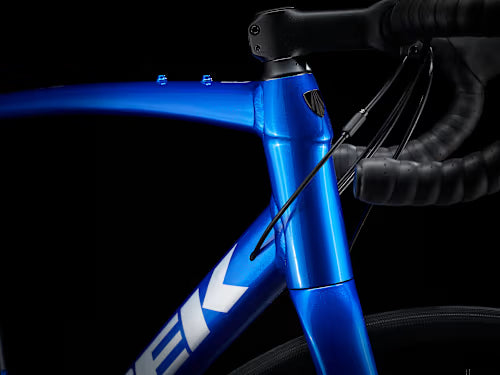

Frame

100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle

Fork

Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Frame fit

Endurance

Weight

56 - 10.30 kg / 22.71 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter

Shimano Sora R3000, 9 speed

Front derailleur

Shimano Sora R3000, 31.8mm clamp

Rear derailleur

Shimano Sora R3000, mid cage, 34T max cog

*Crank

Size: 44

Shimano Sora R3000, 50/34 (compact), 165mm length

Size: 49, 52, 54

Shimano Sora R3000, 50/34 (compact), 170mm length

Size: 56, 58, 61

Shimano Sora R3000, 50/34 (compact), 175mm length

Bottom bracket

Shimano RS500, 68mm, threaded external

Cassette

Shimano Sora HG400, 11-32, 9 speed

Chain

Shimano Sora HG53, 9 speed

Max chainring size

1x: 42T, 2x: 50/34

Hub front

Formula RX-512 alloy, 6-bolt, 100x12mm thru axle

Skewer front

Bontrager Switch thru axle

Hub rear

Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle

Skewer rear

Bontrager Switch thru axle, removable lever

*Rim

Size: 44, 49, 52, 54, 56, 58, 61

Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve

Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, Presta valve

Size: 44, 49, 52, 54, 56, 58, 61

Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve

Spokes

14g stainless steel, black

Tire

Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Max tire size

35mm without fenders, 32mm with fenders

*Saddle

Size: 44, 49, 52
Bontrager Verse Comp, steel rails, 155mm width

Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width

*Seatpost

Size: 44, 49

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length

Size: 52, 54, 56, 58, 61

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

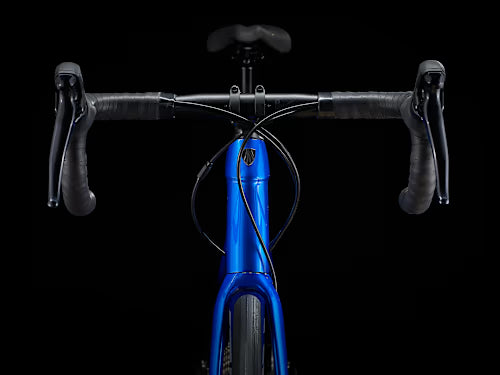

*Handlebar

Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width

Size: 52
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width

Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width

Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width

Handlebar tape

Bontrager Supertack Perf tape

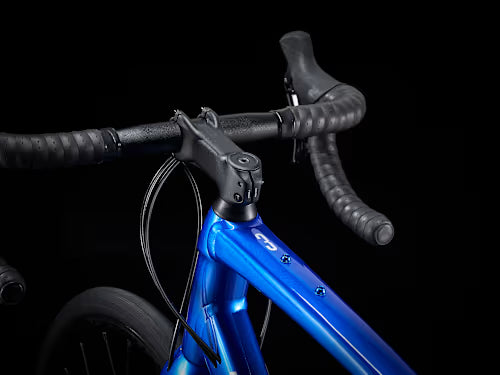

*Stem

Size: 44

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: 49

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: 52, 54

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: 56, 58

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

Size: 61

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

Headset

FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Brake

Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor

Rotor size

Max brake rotor sizes: 160mm front & rear
